Description

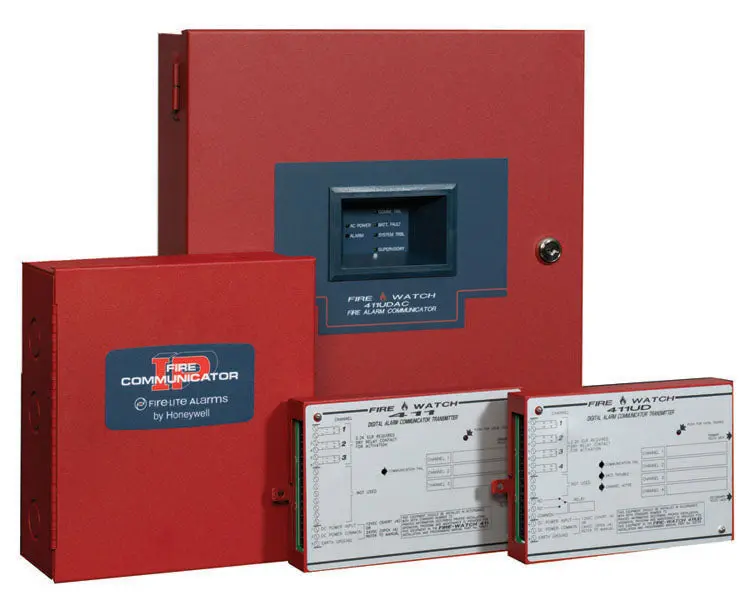

The Fire-Watch 411 series from Fire-Lite Alarms are compact slave Digital Alarm Communicator Transmitters (DACTs) that are designed for a variety of fire, and non-fire applications. They provide either three or four monitoring channels (inputs) respectively. These slave DACTs are a cost-effective solution for applications that require a Fire Alarm control panel to transmit system status to an off-site monitoring facility for central or Remote Station compliance.
|
|
Technical Specifications:
- Three (411) or four (411UD) monitoring channels (inputs).
- Inputs may be individually programmed to monitor the host control panel for:
- Fire Alarm.
- Fire Trouble.
- Fire Supervisory.
- Process Monitoring.
- AC Power Loss.
- Security Alarm.
- Other (Fire and Non-Fire Events).
- Fully supervised trigger inputs require a contact closure for activation.
- 12- or 24-VDC operation, jumper-selectable.
- Industry-first, UL recognized, “dialer-runaway” prevention feature.
- Dual-line, rotary or touch-tone-dial DACT interfaces to public switched telephone network (leased phone lines are not required).
- Includes 15 reporting formats, including the popular ADEMCO Contact ID format.
- Maximum Standby Current: 210uA @ 3.3 VDC (one communication
- every 23.9 seconds with LED blink enabled)
- Maximum Alarm Current (LED on): 5 mA @ 3.3 VDC (LED on)
- Radio Frequency Range: 902-928 MHz
- Battery Type: 4 Panasonic CR123A or 4 Duracell DL 123A
- Battery Life: 2 years
- Battery Replacement: Upon TROUBLE BATTERY LOW display and/or during
|
